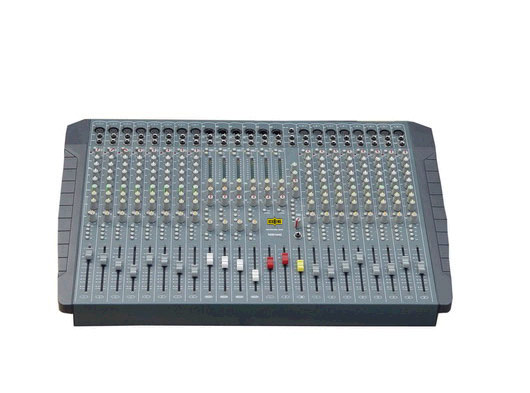

MH Series
Features
§Ultra-low noise
§100mm fader makes the adjustment precisely
§External power supply reduces the noise greatly
§4 band EQ
Specifications
| Model | MH22 | MH1222 | MH1642 |
| Brand | BZURING / Mixer/ MH Series | ||
| Input Channnel (Mono) | 8 | 12 | 16 |
| Input Channnel (Stereo) | / | ／ | / |
| Output Channel (Main) | L/R | L/R | L/R |
| Output Channel (Group/Sub) | G1/G2 | G1/G2 | G1/G2 |
| Effect Channel | √ | √ | √ |
| Input Sensutuvity | Mic-60dBm Line-20dBm Stereo CH In-6dB Aux In-20dB Tape In-10dB Aux Send-20dB MAX | ||
| Output Voltage (Max) | 7 V Max | ||
| S/N | ≥83dB | ||
| THD(1KHz Full Power) | Less than 0.03% at 1KHz | ||
| Frequency Response | 20Hz-20KHz ±3dB | ||
| Headphone | 7V/220 Ω | ||
| Power Consumption | 80W | 80W | 80W |
| Parametric EQ | Hi ±15dB/12KHz Mid ±15dB/2.5KHz Low ±15dB/350Hz | ||
| Power Supply | AC 95V-120V 60Hz/ AC 220-240V/ 50-60Hz | ||
| Dimension (HxWxD)mm | 555x90x516 | 880x175x610 | 1100x175x610 |
| Weight (kg) | 11.8 | 18.8 | 23.1 |
