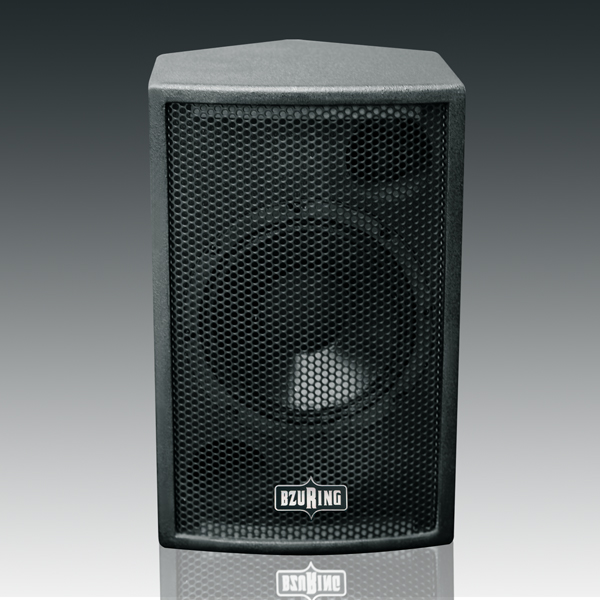

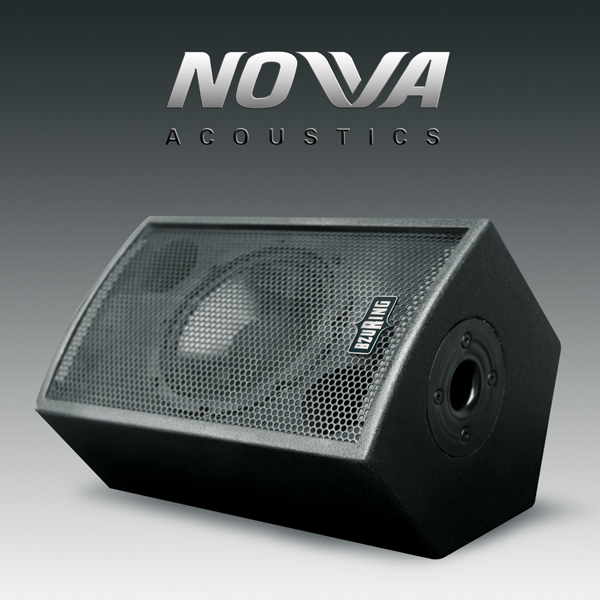

C Series
Features
C series is coaxial speaker which including 8",10", 12" and 15".
Specifications
| Model number | C-8 | C-10 | C12 | C15 |
| Type | coaxial speaker | coaxial speaker | coaxial speaker | coaxial speaker |
| Frequency response | 60Hz-20KHz(±3dB) | 55Hz-20KHz(±3dB) | 50Hz-20KHz(±3dB) | 47Hz-20KHz(±3dB) |
| RMS power | 150W | 250W | 300W | 350W |
| Program power | 300W | 500W | 600W | 700W |
| Norminal Impedance | 8Ohm | 8Ohm | 8Ohm | 8Ohm |
| Sensitivity | 96dB/W/M | 97dB/W/M | 99dB/W/M | 99dB/W/M |
| Max SPL | 120dB | 122dB | 125dB | 127dB |
| Component | 1"+8" coaxial driver | 1"+10" coaxial driver | 1.7"+12" coaxial driver | 1.7"+15" coaxial driver |
| Coverage Angles | 60H°x60°V | 60H°x60°V | 60H°x60°V | 60H°x60°V |
| Dimenstion | 253x271x422mm | 330x352x480mm | 412x388x540mm | 365x580x440mm |
