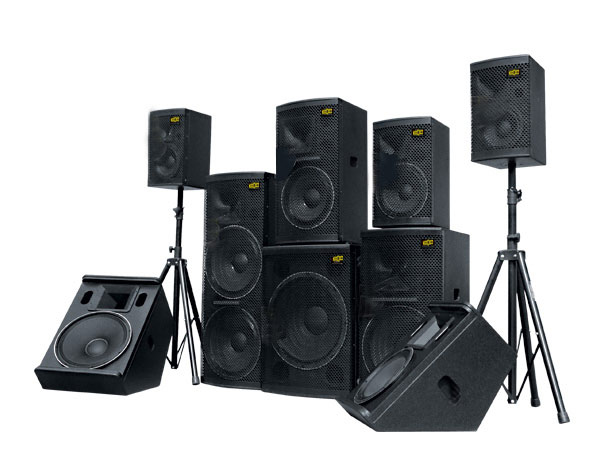

PL Series

Features

Specifications

Product Model	PL-8	PL-10	PL-12	PL-12M (monitor)
Brand	BZURING/Speaker/PLSeries
Frequency Response	65Hz-18KHz	65Hz-18KHz	60Hz-18KHz	60Hz-18KHz
RMS Power	150W	200W	300W	300W
Program Power	300W	400W	600W	600W
Nominal Impedance	8Ω	8Ω	8Ω	8Ω
Sensitivity	96dB/W/M	97dB/W/M	99dB/W/M	99dB/W/M
Maximum SPL	117dB	120dB	123dB	123dB
Component	8" + 1" Horn	10" + 1" Horn	12" + 1.5" Horn	12" + 1.5" Horn
Dispersion Angle	100°H x 90°V	100°H x 90°V	100°H x 90°V	100°H x 90°V
Dimension (mm)	445x(270x220)x300	510x(300x250)x320	720x(370x310)x400	590x452x370
Hang System	4M8 Flying Point	6M10 Flying Point	6M10 Flying Point	6M10 Flying Point
Net Weight	11kg	13kg	21kg	20kg

Product Model	PL-15	PL-15M (monitor)	PL-2150	PL-18W
Brand	BZURING/Speaker/PL Series
Frequency Response	55Hz-18KHz	55Hz-18KHz	50Hz-20KHz	40Hz-120Hz
RMS Power	350W	350W	750W	400W
Program Power	700W	700W	1500W	800W
Nominal Impedance	8Ω	8Ω	4Ω	8Ω
Sensitivity	100dB/W/M	100dB/W/M	104dB/W/M	98dB/W/M
Maximum SPL	125dB	125dB	132dB	124dB
Component	15" + 1.5" Horn	15" + 1.5" Horn	15"x2 + 1.7" Horn	18" Woofer
Dispersion Angle	100°H x 90°V	100°H x 90°V	100°H x 90°V	N/A
Dimension (mm)	810x(410x340)x500	665x452x445	1140x(410x335)x500	530x745x600
Hang System	6M10 Flying Point	6M10 Flying Point	6M10 Flying Point	6M10 Flying Point
Net Weight	27kg	24kg	51kg	45kg
