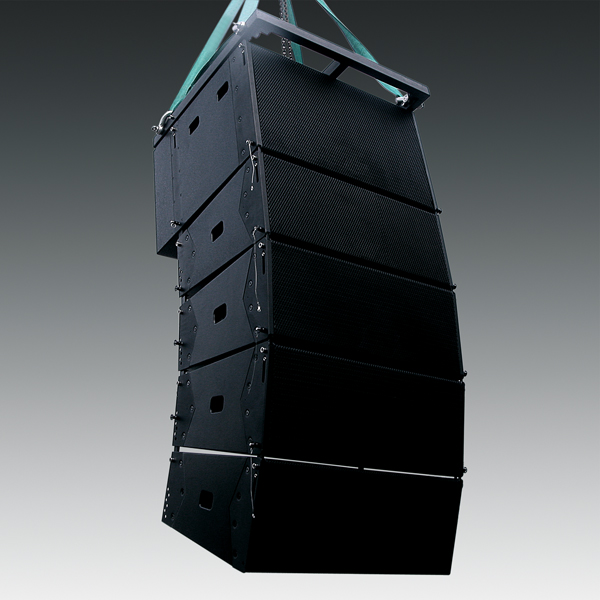

CA0010 & CA28W
Features
PASSIVE and ACTIVE is available
Specifications
| Model number | CA-0010 | CA-28W |
| Type | Two way line array | SUBWOOFER |
| Frequency response | 120Hz-20KHz(-10dB) | 28Hz-220Hz(-10dB) |
| 130Hz-19KHz(±3dB) | 30Hz-200Hz(±3dB) | |
| RMS power | 750W | 800W |
| Program power | 1500W | 1600W |
| Norminal Impedance | 8Ohm | 4Ohm |
| Sensitivity | 99dB/W/M | 101dB/W/M |
| Max SPL | 120dB | 132dB |
| Component | 2X10"+2" | 2X18" SUBWOOFER |
| Coverage Angles | 90H°x10°V | N/A |
| Dimenstion | (300X230)X800X445mm | 560x800x800mm |
