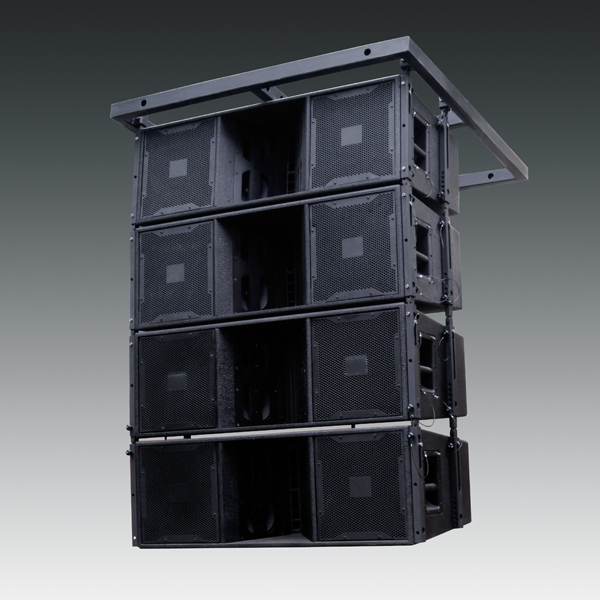

LR-1246
Features
LR-1246 is learning JBL VT-4888 style.
It composed by 2x12"+4x6.5"+2x1.7".
Specifications
| Model number | LR-1246 |
| Type | Line array speaker |
| Frequency response | 50Hz-18KHz ( ± 3dB) |
| RMS power | HF: 100W, MF:200W, LF:800W |
| Program power | HF:200W, MF:400W, LF:1600W |
| Peak power | HF:300W, MF:600W, LF:2400W |
| Norminal impedance | HF:16Ohm, MF:8Ohm, LF:4Ohm |
| Sensitivity (M/W) | HF:105dB, MF:101dB, LF:99dB |
| Max SPL | HF:128dB, MF:217dB, LF:131dB |
| Coverage angle | 85°H X 9°V |
| Component | 12"x2 +6.5"x4 + 1.7"x2 |
| Dimension (WXDXH) | 387x580x1261mm |
