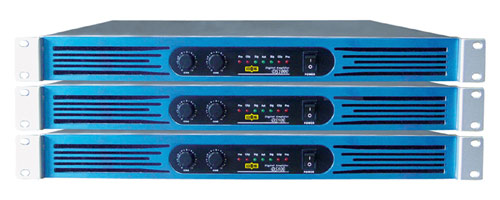

DS Series
Features
Advanced switch-mode operating power supply techinology for higher performance and compact size,variable speed fan for low noise,Built-Clip Limiter Comprehensive front panel indicators including clip,active signal and protect.
Perfect protect circuit including DC, clip, heat, overload and short circuit
Compact size: all models only 1U for reducing rack cost and space
Light Weight: all models only 10kg for easier racking and shipping
Specifications
| Model | DS1000 | DS900 | DS800 | |
| Brand | BZURING / Amplifier/ DS Series | |||
| Power Outout (MAX) | 8Ω | 1100W | 1000W | 900W |
| 4Ω | 1800W | 1650W | 1500W | |
| 2Ω | 3400W | 3200W | 2800W | |
| Input Impedance | Balance | 20KΩ | ||
| Unbalance | 10KΩ | |||
| Frequency Response(±0.5dB) | 10Hz-40KHz | |||
| THD | ≤0.1% | |||
| S/N | ≥105dB (20Hz - 20KHz) | |||
| IMD | ≤0.2% | |||
| Damping Fator | ＞600 | |||
| DC Protection | Have | |||
| Temperature Protected | Have | |||
| Input Sensitivity | 1.1V | |||
| Dimension (HWD)(mm) | 46x500x480 | |||
| Net Weight | 10kg | |||
